Brand:HOLID
Model:AC0806
Features: thread’s design is easy to install, Bidirectional buffer, automatic pressure compensation.
Miniature shock absorber body: high strength hardened steel, surface black finish
The piston rod: high hardness of stainless steel
Piston: wear-resisting for copper
Suitable for working temperature range in - 10 ℃to +80℃

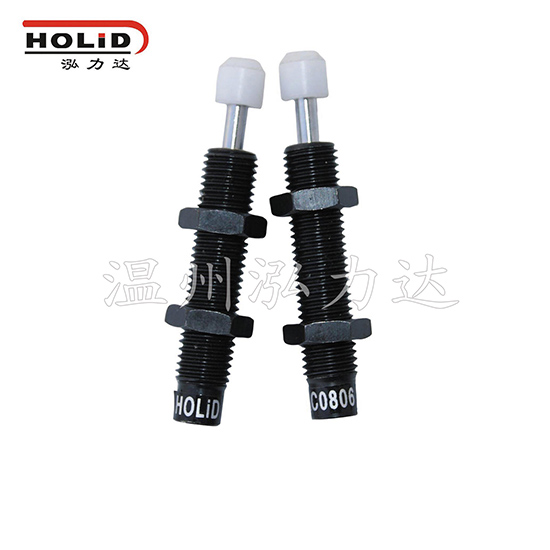

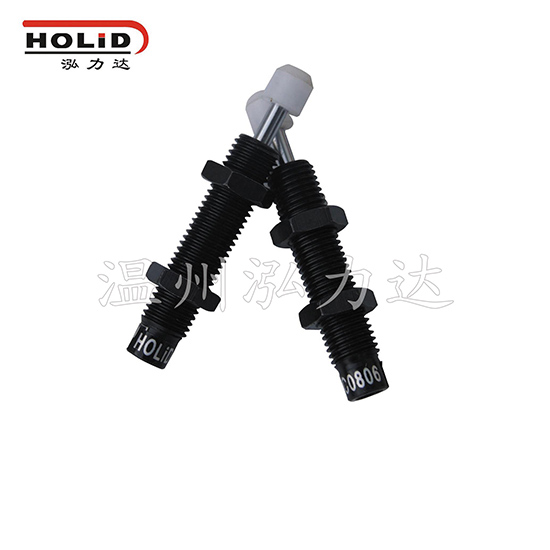

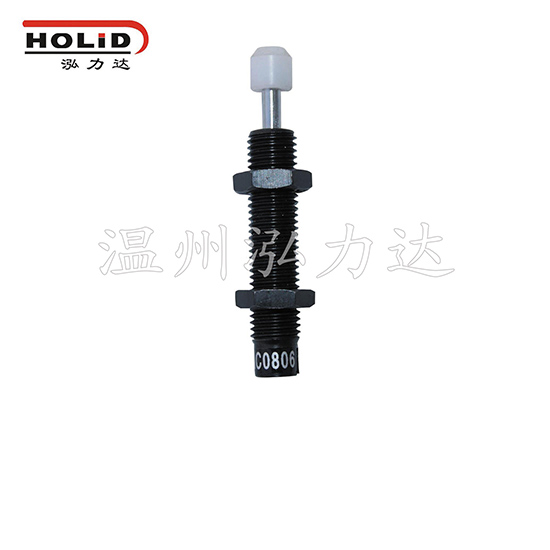

Miniature shock absorber AC0806 is an industrial hydraulic buffers that is maintenance-free bidirectional automatic compensation, has self regulating function to form an good buffer effect, with the change of impact velocity and weight .Meanwhile the miniature shock absorber piston rod with high hardness and imported special seals are ensured high service life, special materials and surface treatment makes this product has good anti-corrosion performance, ensuring the normal use in harsh conditions.
With excellent and stable speed and the performance of shock absorption, Its resistance will adjusting automatically when suffering the loaded strike;
The axis of stainless steel with high hardness, making the buffer have better impact resistance performance and anti-corrosion performance, ensuring the normal use in harsh conditions.
Matters needing attention:
1.Keep the miniature shock absorber piston rod cleaning, do not have iron foreign body.
2.No painting in tube teeth and the axis, so as not to affect the cooling effect and leak case;
3.Pay attention to the strength of fixed plate and eccentric Angle when assembly.
5.If you have the cushion cap product, do not unload cushion cap by self for using , this will seriously affect the service life.
HOLID Miniature shock absorber |AC0806 technical parameters
Brand
|
HOLID
|
Stroke (mm)
|
6
|
The maximum absorption of energy(N.m)
|
2
|
The highest impact speed (m/s)
|
2
|
Operating temperature range (℃)
|
-10-80
|
Weight (g)
|
11
|
HOLID Miniature shock absorber |AC0806 packing parameters
Length (cm)
|
5.5
|
Width (cm)
|
1.1
|
Height (cm)
|
0.9
|
Weight (g)
|
12
|
