Brand:HOLID
Model:AC2525
Features: thread’s design is easy to install, Bidirectional buffer, automatic pressure compensation.
Buffer body: high strength hardened steel, surface black finish
The piston rod: high hardness of stainless steel
Piston: wear-resisting for copper
Suitable for working temperature range in - 10 ℃to +80℃

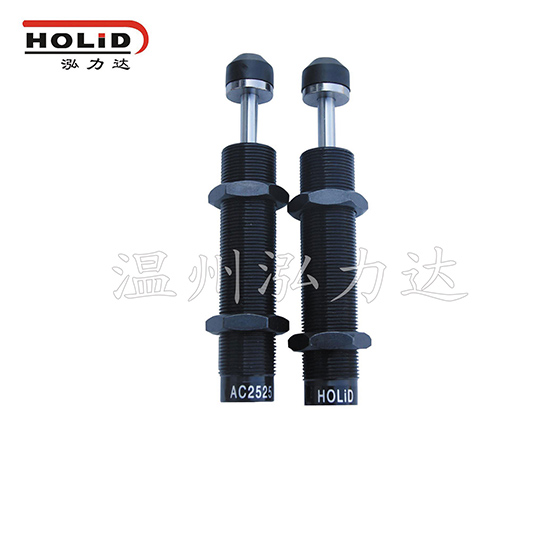

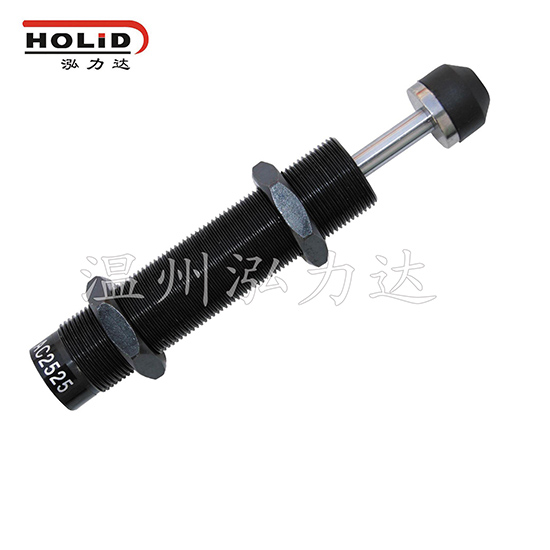

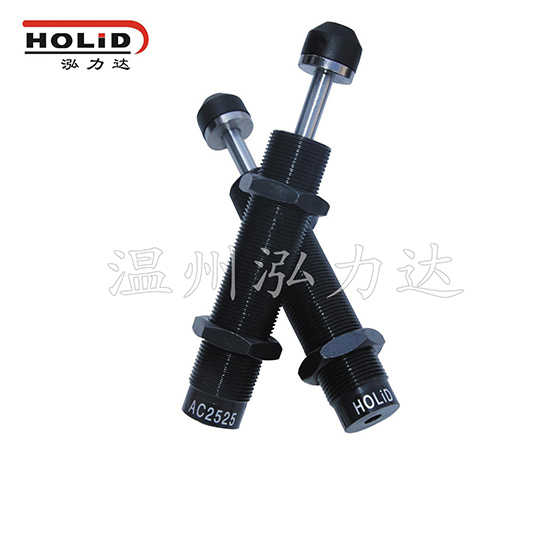

Oil damper AC2525 is an industrial hydraulic buffers that is maintenance-free bidirectional automatic compensation, has self regulating function to form an good buffer effect, with the change of impact velocity and weight .Meanwhile the piston rod with high hardness and imported special seals are ensured high service life, special materials and surface treatment makes this product has good anti-corrosion performance, ensuring the normal use in harsh conditions.
With excellent and stable speed and the performance of shock absorption, Its resistance will adjusting automatically when suffering the loaded strike;
The axis of stainless steel with high hardness, making the buffer have better impact resistance performance and anti-corrosion performance, ensuring the normal use in harsh conditions.
HOLID company is specialized in making shock absorber,we also can make some unstandard model follow your demand!
HOLID oil damper |AC2525 technical parameters
Brand
|
HOLID
|
Stroke (mm)
|
25
|
The maximum absorption of energy(N.m)
|
80
|
The highest impact speed (m/s)
|
4
|
Operating temperature range (℃)
|
-10-80
|
Weight (g)
|
330
|
HOLID oil damper |AC2525 packing parameters
Length (cm)
|
17.5
|
Width (cm)
|
1.6
|
Height (cm)
|
1.1
|
Weight (g)
|
350
|
