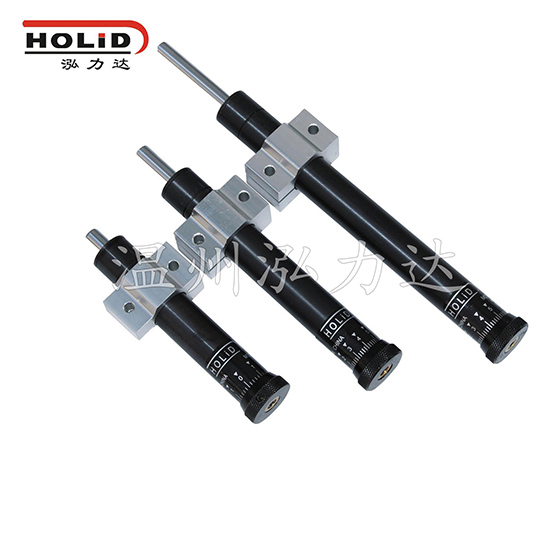

Model：SR15

Features: installation easily, maintenance-free, when the piston rod’s load unloading, piston rod returning automatically.

Speed Controller body: high strength hardened steel, surface black finish

The piston rod: high hardness of stainless steel

Piston: wear-resisting for copper

Suitable for working temperature range in -40 ℃to +80℃

Hydraulic Speed Controller SR15 adopts the fully closed structure, action accurate and uniform, the piston rod can be any stops on the stroke, realized efficient feed function step by step, improved the machining precision. When the piston rod is pressed, hydraulic oil under pressure outflow from the adjustable overflow oil hole, provides the whole stroke with a constant feed control precision. By rotating the end of the outer shell outer adjustment knob can realize the adjustment of the feed speed. Fixed aluminum base makes it easier to install and adjust knob to feed control more convenient, at the same time under the condition of temperature difference will not affect the steady speed function.

Matters needing attention:

1.No painting in tube teeth and the axis, so as not to affect the cooling effect and leak case

2.Pay attention to the strength of fixed plate and eccentric angle when assembly

3.Bidirectional cannot act at the same time, the other side can work only to one side after the reset complete

4.Keep the piston rod clean, do not have iron foreign body

5.If you have the cushion cap product, do not unload cushion cap by self for using, this will seriously affect the service life

HOLID hydraulic Speed Controller | SR15 technical parameters

HOLID hydraulic Speed Controller| SR15 packing parameters
