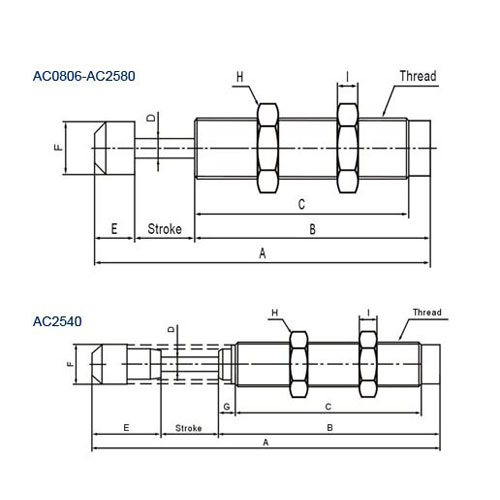

Model |
Thread |
Stroke(mm) |
A |
B |
C |
D |
E |
F |
H |
I |
|
AC0806 |
M8×1.0 |
6 |
50.5 |
38 |
33 |
3 |
6 |
6.6 |
11 |
3 |
|
AC1005 |
M10×1 |
5 |
38.7 |
27.7 |
22.9 |
3 |
6 |
8.6 |
14 |
4 |
|
AC1008 |
M10×1 |
8 |
57.5 |
43 |
38 |
3 |
6 |
8.6 |
14 |
4 |
|
AC1210 |
M12×1 |
10 |
70 |
50 |
45.5 |
3 |
9.5 |
10.3 |
16 |
4 |
|
AC1412 |
M14×1.5 |
12 |
103 |
76 |
67 |
4 |
14.6 |
12 |
19 |
5 |
|
AC1416 |
M14×1.5 |
16 |
126 |
95 |
86 |
4 |
14.6 |
12 |
19 |
5 |
|
AC1420 |
M14×1.5 |
20 |
129.3 |
95 |
86 |
4 |
14.3 |
12 |
19 |
5 |
|
AC2016 |
M20×1.5 |
16 |
129.5 |
95 |
84 |
6 |
18 |
18 |
27 |
7 |
|
AC2020 |
M20×1.5 |
20 |
148.5 |
110 |
100 |
6 |
18 |
18 |
27 |
7 |
|
AC2030 |
M20×1.5 |
30 |
158.5 |
110 |
100 |
6 |
18 |
18 |
27 |
7 |
|
AC2050 |
M20×1.5 |
50 |
235 |
167 |
156 |
6 |
18 |
18 |
27 |
7 |
|
AC2525 |
M25×1.5 |
25 |
156 |
111 |
101 |
8 |
19.5 |
22 |
32 |
8 |
|
AC2550 |
M25×1.5 |
50 |
240.5 |
170.5 |
100 |
8 |
19.5 |
22 |
32 |
8 |
|
AC2580 |
M36×1.5 |
80 |
337 |
237 |
100 |
8 |
19.5 |
22 |
32 |
8 |
|
Model |
Thread |
Stroke(mm) |
A |
B |
C |
D |
E |
F |
G |
H |
I |
|
AC2540 |
M25×1.5 |
40 |
212.7 |
127.3 |
115 |
8 |
35.6 |
22 |
9.4 |
32 |
10 |
|
AC3660 |
M36×1.5 |
60 |
248.5 |
162 |
134 |
10 |
26 |
35 |
17 |
46 |
16 |
Model
Stroke
Energy absorption Nm(Etc)
Hours of energy absorption Nm(Etc)
Max effective
mass (kg)
Max impact Speed (m/s)
Operating
Weight (g)
1
2
3
1
2
3
AC0806
6
2
1200
0.5
2
6
2
1
0.5
-40~80
11
AC1005
5
3
3600
1
3
7
3
1.5
0.8
-40~80
14
AC1008
8
4
5000
2
4
9
3
1.5
0.8
-40~80
20
AC1210
10
5
10000
5
10
30
2
1.5
0.8
-40~80
31.5
AC1412
12
15
30000
8
50
100
3
1.5
0.8
-40~80
80
AC1416
16
20
35000
10
70
150
3
1.5
0.8
-40~80
90
AC1420
20
20
35000
10
70
150
3
1.5
0.8
-40--80
95
AC2016
16
35
38000
30
200
700
3.5
2
1
-40--80
215
AC2020
20
40
40000
30
200
700
3.5
2
1
-40~80
215
AC2050
50
60
60000
60
400
1200
3.5
2
1
-40~80
300
AC2525
25
80
70000
200
800
1500
4
2.5
1
-40~80
330
AC2540
40
120
75000
300
1200
2000
4
2.5
1
-40~80
430
AC3660
60
250
120000
400
1500
2400
40
2.5
1
-40~80
1030
(mm)
Temperature (°C)
