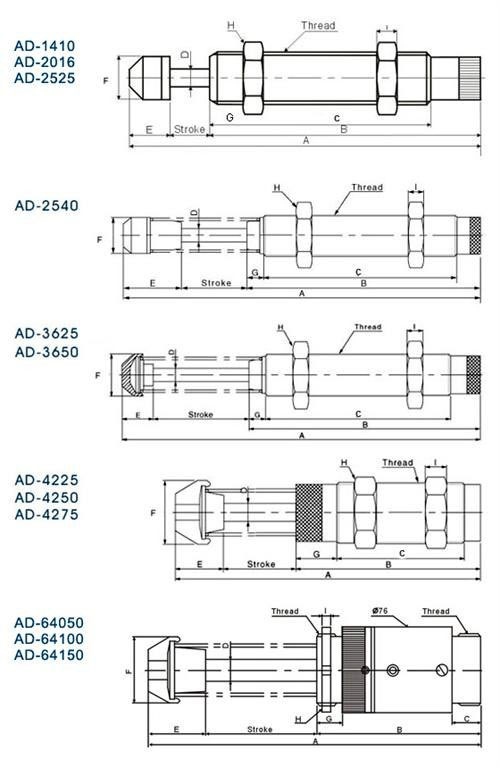

Model |
Thread |
Stroke(mm) |
A |
B |
C |
D |
E |
F |
H |
I |
|
AD1410 |
M14×1.5 |
10 |
103.3 |
78.3 |
67 |
4 |
14.6 |
12 |
19 |
5 |
|
AD2016 |
M20×1.5 |
16 |
134.5 |
100 |
84 |
6 |
18 |
18 |
27 |
7 |
|
AD2020 |
M20*1.5 |
20 |
154.5 |
116 |
100 |
6 |
16 |
18 |
27 |
7 |
|
AD2025 |
M20*1.5 |
25 |
159.5 |
116 |
100 |
6 |
16 |
18 |
27 |
7 |
|
AD2525 |
M25×1.5 |
25 |
161 |
116 |
101 |
8 |
19.5 |
22 |
32 |
8 |
|
Model |
Thread |
Stroke(mm) |
A |
B |
C |
D |
E |
F |
G |
H |
I |
|
AD2540 |
M25×1.5 |
40 |
218 |
132 |
115 |
8 |
36 |
22 |
10 |
32 |
10 |
|
AD3625 |
M36×1.5 |
25 |
184 |
133 |
103 |
10 |
26 |
35 |
10 |
46 |
15 |
|
AD3650 |
M36×1.5 |
50 |
247 |
171 |
134 |
10 |
26 |
35 |
17 |
46 |
15 |
|
AD4225 |
M42×1.5 |
25 |
186.9 |
127.5 |
88.5 |
12 |
33.9 |
43.7 |
29 |
49 |
15 |
|
AD4550 |
M42×1.5 |
50 |
246 |
157.3 |
118.3 |
12 |
38.2 |
43.7 |
29 |
49 |
15 |
|
AD4275 |
M42×1.5 |
75 |
301.4 |
187.8 |
148.8 |
12 |
38.2 |
43.7 |
29 |
49 |
15 |
|
AD-64050 |
UNF21/2-12 |
50 |
247.8 |
146 |
26 |
20 |
51.8 |
59 |
23 |
76.2 |
9.4 |
|
AD-64100 |
UNF21/2-12 |
100 |
347.8 |
196 |
26 |
20 |
51.8 |
59 |
23 |
76.2 |
9.4 |
|
AD-64150 |
UNF21/2-12 |
150 |
467.8 |
256 |
26 |
20 |
51.8 |
59 |
23 |
76.2 |
9.4 |
|
Model |
Stroke |
Energy Absorption Nm(Etc)
|
Hours of Energy Absorption Nm(Etc) |
Max Effective mass(kg) |
Max Impact Speed (m/s) |
Operating
|
Weight (g) |
||||
|
1 |
2 |
3 |
1 |
2 |
3 |
||||||
|
AD1410 |
10 |
20 |
25000 |
80 |
80 |
80 |
3 |
3 |
3 |
-40~80 |
90 |
|
AD2016 |
16 |
25 |
30000 |
200 |
200 |
200 |
3.5 |
3.5 |
3.5 |
-40~80 |
230 |
|
AD2020 |
20 |
35 |
35000 |
250 |
250 |
250 |
3.5 |
3.5 |
3.5 |
-40~80 |
250 |
|
AD2025 |
25 |
39 |
39000 |
312 |
312 |
312 |
3.5 |
3.5 |
3.5 |
-40~80 |
260 |
|
AD2525 |
25 |
85 |
70000 |
400 |
400 |
400 |
3.5 |
3.5 |
3.5 |
-40~80 |
350 |
|
AD2540 |
40 |
100 |
80000 |
700 |
700 |
700 |
3.5 |
3.5 |
3.5 |
-40~80 |
455 |
|
AD3650 |
50 |
300 |
100000 |
1400 |
1400 |
1400 |
3 |
3 |
3 |
-40~80 |
1100 |
|
AD4225 |
25 |
260 |
125000 |
3000 |
3000 |
3000 |
3.5 |
3.5 |
3.5 |
-40~80 |
1280 |
|
AD4250 |
50 |
500 |
150000 |
4000 |
4000 |
4000 |
4.5 |
4.5 |
4.5 |
-40~80 |
1495 |
|
AD4275 |
75 |
750 |
180000 |
6000 |
6000 |
6000 |
4.5 |
4.5 |
4.5 |
-40~80 |
1710 |
|
AD6450 |
50 |
12000 |
1500000 |
12727 |
12727 |
12727 |
1.5 |
1.5 |
1.5 |
-40~80 |
4115 |
|
AD64100 |
100 |
24000 |
2000000 |
18181 |
18181 |
18181 |
1.5 |
1.5 |
1.5 |
-40~80 |
5280 |
|
AD64150 |
150 |
36000 |
2500000 |
23636 |
23636 |
23636 |
1.5 |
1.5 |
1.5 |
-40~80 |
6785 |
