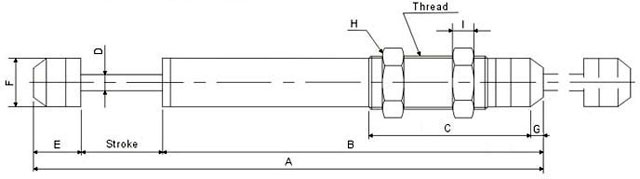

Model |
Thread |
Stroke(mm) |
A |
B |
C |
D |
E |
F |
G |
H |
I |
|
AC2030-1 |
M20×1.5 |
30 |
189 |
123 |
44 |
6 |
18 |
18 |
3 |
26 |
8 |
|
AC2030-2 |
M20×1.5 |
30 |
189 |
123 |
44 |
6 |
18 |
18 |
3 |
26 |
8 |
|
AC2035-1 |
M20×1.5 |
35 |
223 |
123 |
40 |
6 |
15 |
18 |
5 |
26 |
8 |
|
AC2035-2 |
M20×1.5 |
35 |
223 |
123 |
40 |
6 |
15 |
18 |
5 |
26 |
8 |
|
Model |
Stroke |
Energy absorption Nm(Etc) |
Hours of energy absorption Nm(Etc) |
The most effective (kg) |
Max impact Speed (m/s) |
Operating |
|
ACD-2030-1 |
30 |
45 |
54,000 |
40 |
3.5 |
-40～85 |
|
ACD-2030-2 |
30 |
45 |
54,000 |
300 |
2.0 |
-40～85 |
|
ACD-2035-1 |
35 |
52 |
62,400 |
40 |
3.5 |
-40～85 |
|
ACD-2035-2 |
35 |
52 |
62,400 |
200 |
2.0 |
-40～85 |
