Model：AD2016

Features: Full thread’s design is easy to install, pressure can be adjusted

Hydraulic buffer body: high strength hardened steel, surface black finish

The hydraulic buffer piston rod: high hardness of stainless steel

Piston: wear-resisting for copper

Suitable for working temperature range in - 40 ℃to +80℃

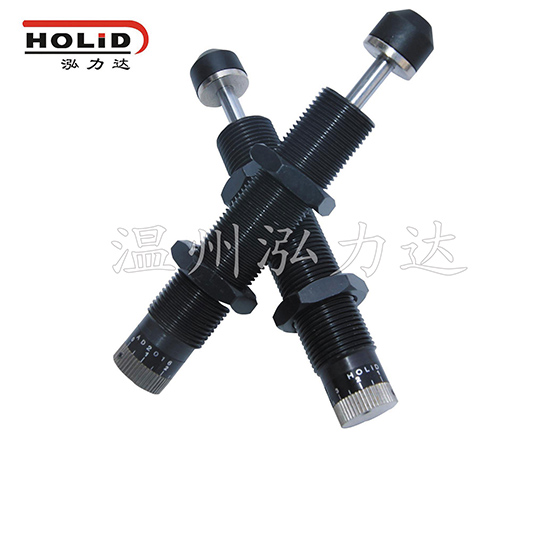

Hydraulic buffer AD2016 is an industrial hydraulic buffer that is maintenance-free pressure adjustable, aim at the change of moving object’s speed , adjustment and the matching of available regulator is the most appropriate buffer that with absorbing ability, formed good buffer effect. Meanwhile the hydraulic buffer piston rod with high hardness and imported special seals are ensuring high service life , special materials and surface treatment makes this product has good anti-corrosion performance, ensured the normal use in harsh conditions.

Matters needing attention:

1.No painting in tube teeth and the axis, so as not to affect the cooling effect and leak case

2.Pay attention to the strength of fixed plate and eccentric Angle when assembly

3.Bidirectional cannot act at the same time, the other side can work only to one side after the reset complete

4.Keep the hydraulic buffer piston rod clean, do not have iron foreign body

5.If you have the cushion cap product, do not unload cushion cap by self for using, this will seriously affect the service life

Application:

1,hydraulic buffer for automation line

2,hydraulic buffer for automation facility

3,hydraulic buffer for transportation facility

5,hydraulic buffer for vacuum circuit breaker

6,hydraulic buffer for textile machine

7,hydraulic buffer for turnstile gate.

HOLID hydraulic buffer |AD2016 technical parameters

HOLID hydraulic buffer |AD2016 packing parameters
