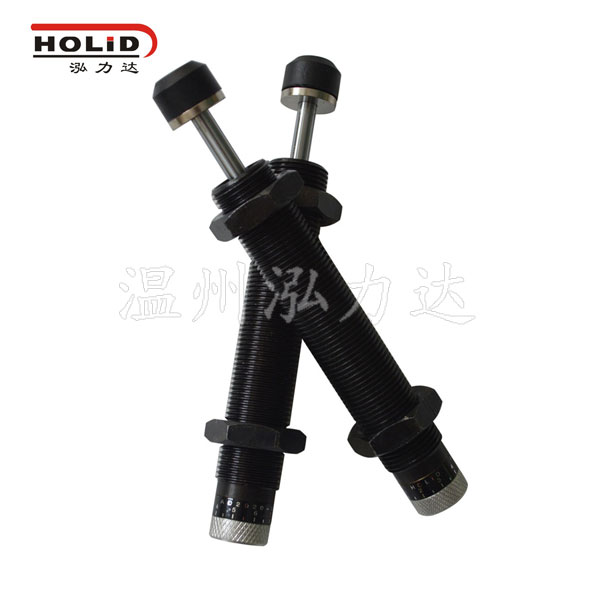

Model：AD2020
Features: Full thread’s design is easy to install, pressure can be adjusted
Adjustable shock absorber body: high strength hardened steel, surface black finish
The Adjustable shock absorber piston rod: high hardness of stainless steel
Piston: wear-resisting for copper
Suitable for working temperature range in - 40 ℃to +80℃
Adjustable shock absorber AD2020 is an industrial hydraulic buffer that is maintenance-free pressure adjustable, aim at the change of moving object’s speed , adjustment and the matching of available regulator is the most appropriate buffe that with absorbing ability,forme good buffe effect.Meanwhile the Adjustable shock absorber piston rod with high hardness and imported special seals are ensuring high service life , special materials and surface treatment makes this product has good anti-corrosion performance, ensured the normal use in harsh conditions.
Matters needing attention:
1.If you have the cushion cap product, do not unload cushion cap by self for using, this will seriously affect the service life
2.No painting in tube teeth and the axis, so as not to affect the cooling effect and leak case
3.Pay attention to the strength of fixed plate and eccentric Angle when assembly
4.Keep the Adjustable shock absorber piston rod clean, do not have iron foreign body
HOLID Adjustable shock absorber |AD2020 technical parameters
|
Brand |
HOLID |
|
Stroke (mm) |
20 |
|
The maximum absorption of energy(N.m) |
35 |
|
The highest impact speed (m/s) |
3.5 |
|
Operating temperature range (℃) |
-40-80 |
|
Weight (g) |
250 |
HOLID Adjustable shock absorber |AD2020 packing parameters
|
Length (cm) |
17.5 |
|
Width (cm) |
1.6 |
|
Height (cm) |
1.1 |
|
Weight (g) |
245 |
