Model：AD2025
Features: Full thread’s design is easy to install, pressure can be adjusted
Buffer body: high strength hardened steel, surface black finish
The piston rod: high hardness of stainless steel
Piston: wear-resisting for copper
Suitable for working temperature range in - 40 ℃to +80℃

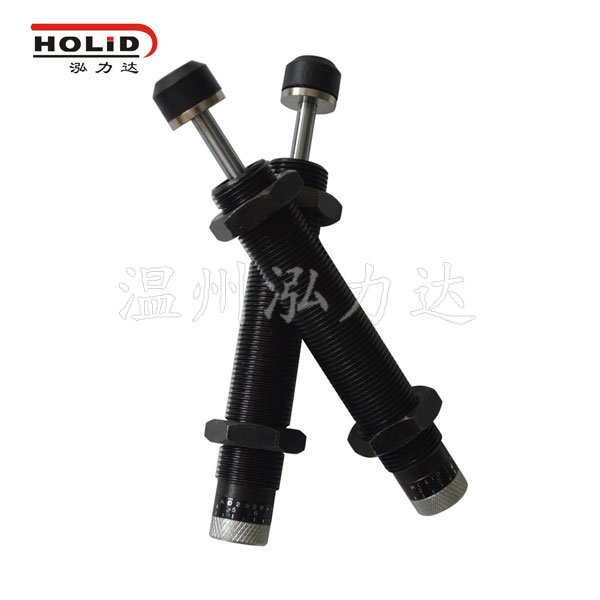

Hydraulic buffer AD2025 is an industrial hydraulic buffer that is maintenance-free pressure adjustable, aim at the change of moving object’s speed , adjustment and the matching of available regulator is the most appropriate buffer that with absorbing ability, formed good buffer effect. Meanwhile the piston rod with high hardness and imported special seals are ensuring high service life , special materials and surface treatment makes this product has good anti-corrosion performance, ensured the normal use in harsh conditions.
Matters needing attention:
1.No painting in tube teeth and the axis, so as not to affect the cooling effect and leak case
2.Pay attention to the strength of fixed plate and eccentric Angle when assembly
3.Bidirectional cannot act at the same time, the other side can work only to one side after the reset complete
4.Keep the piston rod clean, do not have iron foreign body
5.If you have the cushion cap product, do not unload cushion cap by self for using, this will seriously affect the service life
HOLID hydraulic buffer |AD2025 technical parameters
|
Brand |
HOLID |
|
Stroke (mm) |
25 |
|
The maximum absorption of energy(N.m) |
39 |
|
The highest impact speed (m/s) |
3.5 |
|
Operating temperature range (℃) |
-40-80 |
|
Weight (g) |
260 |
HOLID hydraulic buffer |AD2025 packing parameters
|
Length (cm) |
17.5 |
|
Width (cm) |
1.6 |
|
Height (cm) |
1.1 |
|
Weight (g) |
|
